Direct answer: The 90-minute rule means every battery-powered emergency luminaire must prove it can run at full illumination for 90 minutes — a 30-second functional test every month and a full 90-minute duration test every year under NFPA 101, or a monthly short test plus an annual full-duration test in the register under EN 50172. Self-test systems automate the checks but not the paperwork: the monthly visual inspection, the annual duration test where required, and the retrievable test records are still yours. On a mid-size building, testing labor over ten years routinely exceeds what you paid for the fixtures.
Where the 90-minute number comes from

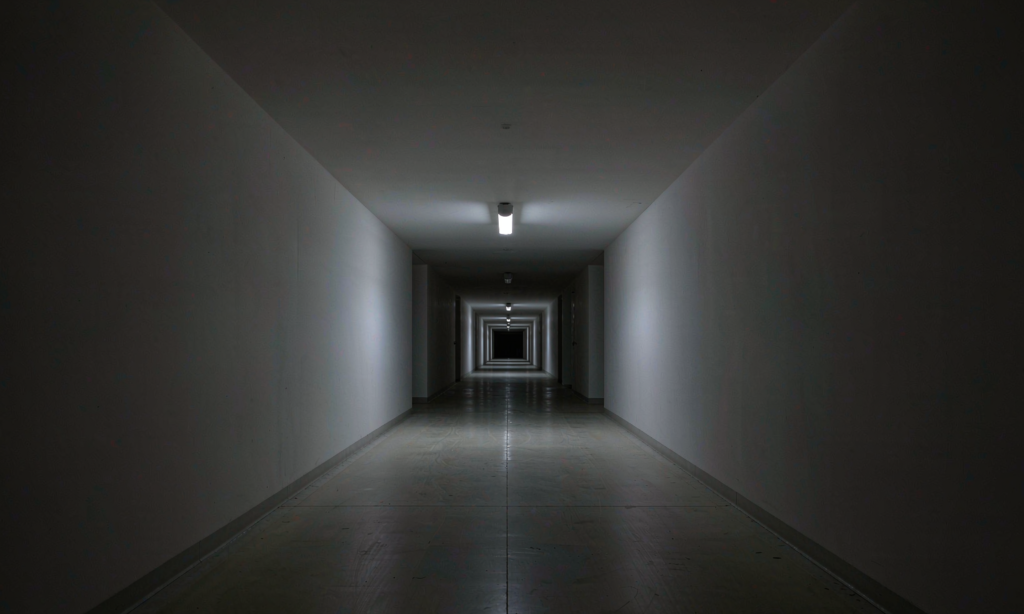

NFPA 101, the Life Safety Code, requires emergency illumination to operate for at least 1.5 hours when normal power fails, with initial illumination of at least 1 footcandle average along the path of egress, declining to no less than 0.6 footcandle at the end of the 90 minutes. Transfer to emergency power must happen within 10 seconds. Exit signs sit under the same emergency supply expectation, so the exit sign and the downlights in the corridor are one maintenance population, not two.
The power source changes who maintains what. Integral battery packs inside unit equipment are the small-building default. Central inverters and generator systems push the batteries into one room — and the governing documents shift accordingly: generators fall under NFPA 110, and stored electrical energy systems other than unit equipment batteries fall under NFPA 111. The testing logic below still applies, but the test point moves from a hundred small fixtures to one battery bank, which is exactly why the ten-year maintenance economics differ so sharply between architectures.
What NFPA 101 7.9.3 actually requires, month by month
Section 7.9.3 lays out three permitted testing regimes, and the differences matter commercially:
| Regime under NFPA 101 7.9.3 | Monthly | Annual | Records |
|---|---|---|---|
| Manual testing (7.9.3.1.1) | Functional test of at least 30 seconds, 3 to 5 weeks between tests | Functional test of at least 1.5 hours for battery-powered systems | Written records kept by the owner for the authority having jurisdiction |
| Self-testing / self-diagnostic equipment (7.9.3.1.2) | Automatic 30-second test plus diagnostic routine every 30 days; failure shown on a status indicator; visual inspection at intervals not exceeding 30 days | The 1.5-hour functional test is still required | Written records kept by the owner |
| Computer-based self-testing (7.9.3.1.3) | Automatic 30-second test plus diagnostic routine every 30 days, results held in the system | Duration testing per the computer-based regime | Test history reports retrievable for the AHJ |
Two details get buildings cited. The monthly window is defined — at least three weeks and at most five weeks between tests, so “whenever someone remembers” is a deficiency. And every regime still ends with written records the owner must be able to produce. State surveyors have issued real citations over nothing more than a missing annual 90-minute test record, in otherwise well-maintained facilities.
The European parallel: EN 50172 and the test register
European practice converges on the same cadence with different paperwork. EN 50172 requires a brief monthly functional test — short enough not to meaningfully drain the battery — and once every twelve months a full rated-duration test whose results are entered in a register. Emergency luminaires themselves are covered by EN 60598-2-22, and self-diagnostic hardware is governed by IEC 62034 (harmonized in Europe as EN 62034), the standard for automatic test systems for battery-powered emergency escape lighting.
IEC 62034 is worth reading before you buy anything with a “self-test” label on it, because it defines what a compliant automatic test system must actually do: run the functional test at least monthly and the duration test at least annually, report any fault within 24 hours of detection, monitor the battery supply, the changeover device and the lamp, refuse to let a later successful function test erase an earlier failed duration test, preserve test history through a power outage, and restrict changes to test frequency and duration to authorized personnel. If a vendor’s self-test feature does less than that, it is a status LED, not a test system.
The labor math nobody puts in the quotation
Manual testing is priced in technician time, and the fixture count is the multiplier. The numbers below are an illustrative model, not a quote — walk time varies hugely with ceiling height, access and site discipline — but the shape of the result is stable across every site we have been involved with.
| Line item (150-unit building, illustrative) | Assumption | Annual load |
|---|---|---|
| Monthly functional test | 2 to 4 minutes per unit including access, ladder work and log entry | 150 × 12 × 3 min ≈ 90 technician-hours |
| Annual 90-minute duration test | Setup, monitoring by exception, restoration and reporting across one or two visits | Roughly 20 to 30 technician-hours |
| Failure follow-up | Typically a few percent of units per year: batteries, lamps, heads | Add 10 to 20 technician-hours |
| Total manual regime | At a contracted maintenance rate in the typical commercial range | Roughly 120 to 140 technician-hours per year |
Run that over a ten-year battery cycle and the labor line lands in the same order of magnitude as the original fixture purchase — and it repeats every decade, because the batteries underneath get replaced on that cycle regardless. This is why the integral-versus-central-inverter decision we analyzed in Integral Battery Backup vs Central Inverter: Emergency Lighting TCO cannot be made on first cost alone, and why the maintenance clauses in Commercial LED Lighting Warranties deserve as much negotiation time as the price.
What a self-test system actually records
A compliant self-test or addressable test system replaces the clipboard with a log, and the content of that log is the real product. Per-unit results for each monthly functional test and annual duration test; battery, charger, lamp and communication faults with timestamps; the state of the changeover device; and a summary view that lets a facility manager see the whole population at a glance. Faults must be latched — a unit that failed its duration test in March cannot quietly look healthy in April because a later functional test succeeded — and the history must survive a power outage and export to something an inspector can read.
That last requirement is where purchasing decisions quietly fail. A system whose records live on a discontinued local panel, or inside a cloud account tied to the installer’s personal login, produces test data nobody can produce at inspection. Ask, before ordering: who owns the login, what format does the export take, and does it survive the vendor going out of business?
Where self-test systems still fail inspection

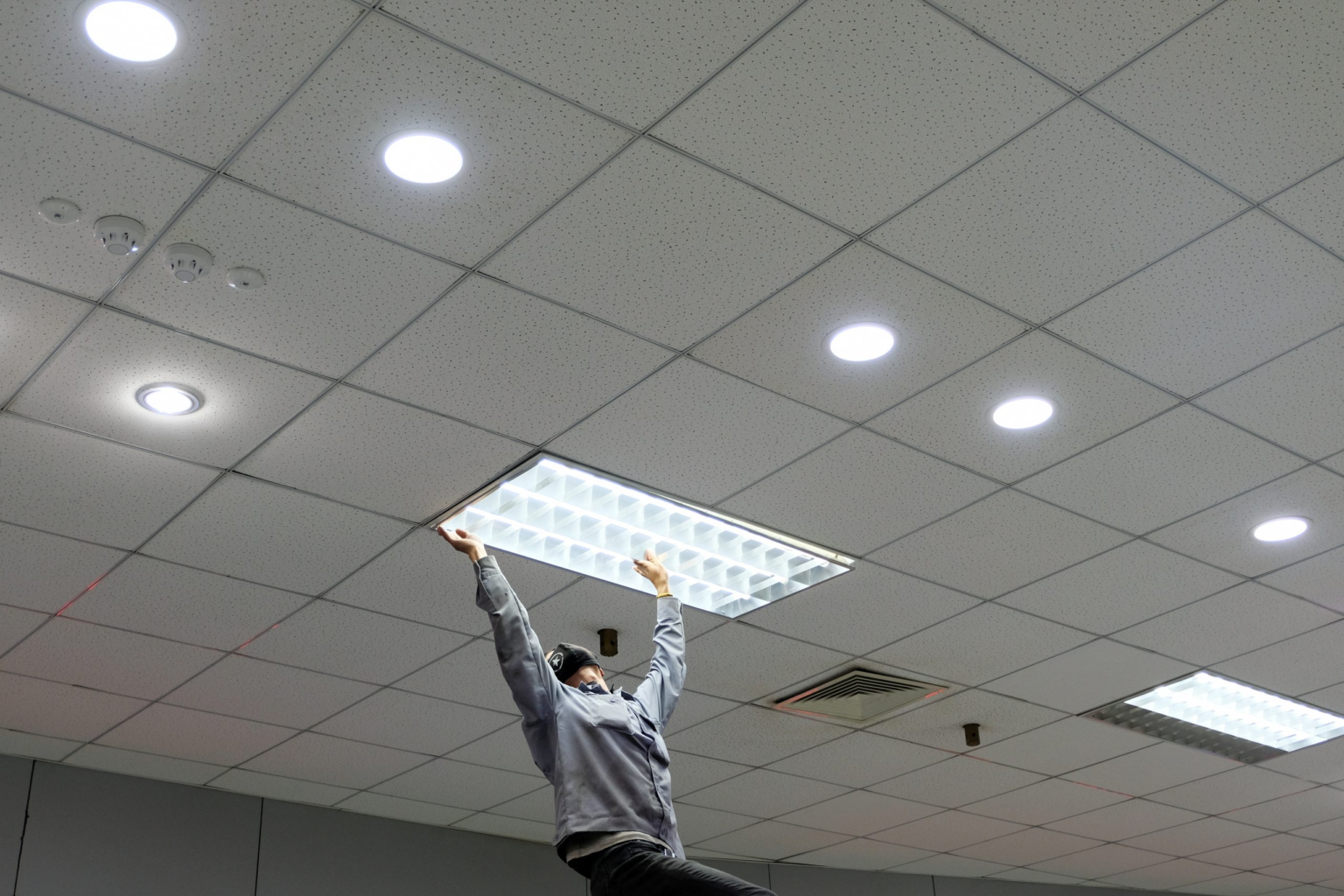

Self-testing is not a compliance castle, and inspectors know its four weak points. First, NFPA 101 still requires a visual inspection at intervals not exceeding 30 days on self-testing equipment — someone physically walks the building, checks indicators, housing damage, head aim and obstructions. Second, the annual duration requirement does not vanish: a 30-second monthly diagnostic proves the lamp and the changeover work, and proves nothing about whether a tired battery can still deliver 90 minutes, which is precisely the failure mode self-diagnosis exists to catch and why the annual full-duration test stays in the code. Third, the record has to be retrievable — an automatic log that the AHJ cannot see on the day of inspection equals a missing record, with the same citation result as no test at all. Fourth, nothing automates physical defects: a lamp head aimed at the wall or an exit sign blocked by stored cartons will pass every electronic self-check on the panel.
Budget self-testing accordingly. It reliably removes the biggest cost block — the monthly walk-and-discharge routine — and gives you earlier fault detection, which cuts the failure follow-up line. It does not remove the inspection, the annual test where the adopted regime requires it, or the owner’s responsibility for the record.
Specifying for low lifetime testing cost
- Ask for self-diagnostic hardware compliant with IEC 62034 / EN 62034, with the failure conditions it monitors listed in the datasheet, not just “self-test” on the box.
- On buildings above roughly a hundred units, price addressable systems with central reporting against the labor table above — the crossover usually arrives faster than buyers expect.
- Check that test history exports to a portable format and that the system clock and logs survive power loss.
- Match battery chemistry to the site: self-contained units on long unattended cycles need batteries whose calendar life comfortably exceeds the service interval, and the replacement cycle should appear in the maintenance contract, not be discovered in year four.
- Confirm which testing regime your authority having jurisdiction has adopted before writing the maintenance plan — the code is enforced at the edition the jurisdiction adopts, and extensions of the monthly interval are possible only with AHJ approval.
The inspection-side details of what surveyors physically check are covered in Emergency Lighting Compliance: What Inspectors Actually Check, and the product-level standards landscape — durations, illuminance floors and marking — in Emergency Lighting Standards: What Wholesale Buyers Must Know Before Sourcing.
Frequently asked questions
Is a 30-second monthly test enough to prove battery health?
No, and the code does not pretend otherwise. The monthly functional test proves the unit transfers to battery and the lamp lights. Capacity for 90 minutes is only proven by the annual full-duration test — which is exactly why self-testing equipment still has to complete it, and why a unit can look healthy all year and fail in month eleven of a real outage.
Does self-testing equipment eliminate the annual 90-minute test under NFPA 101?
For the self-testing/self-diagnostic regime in 7.9.3.1.2, no — the annual functional test of at least 1.5 hours is still required, and records must still be kept. Computer-based systems under 7.9.3.1.3 shift more of the testing into the system, but you should confirm the accepted practice with your authority having jurisdiction before writing it into the maintenance plan.
What is a test register under EN 50172?
The register is the running log of emergency lighting tests: date, type of test, result and remedial action. It is the document the enforcing authority asks for, and an automatic test system’s value is largely that it fills the register accurately without anyone climbing a ladder.
How long do emergency lighting batteries actually last?
It depends on chemistry and environment. Sealed lead-acid packs in self-contained units are typically quoted around a three-to-five-year service life at room temperature, while lithium iron phosphate runs materially longer — commonly marketed at seven years and beyond. Elevated ambient temperatures shorten all of them, which is why fixed replacement intervals belong in the maintenance budget from day one.
Who performs the monthly and annual tests?
The building owner is responsible, and NFPA 101 requires the written records to be kept by the owner for the authority having jurisdiction. In practice the work is done by in-house maintenance staff or a contracted fire and life-safety provider; what the AHJ checks is that the record exists, is current and matches the installed population.
