PRODUCT CODE: YBL-TP-120 / YBL-TP-150

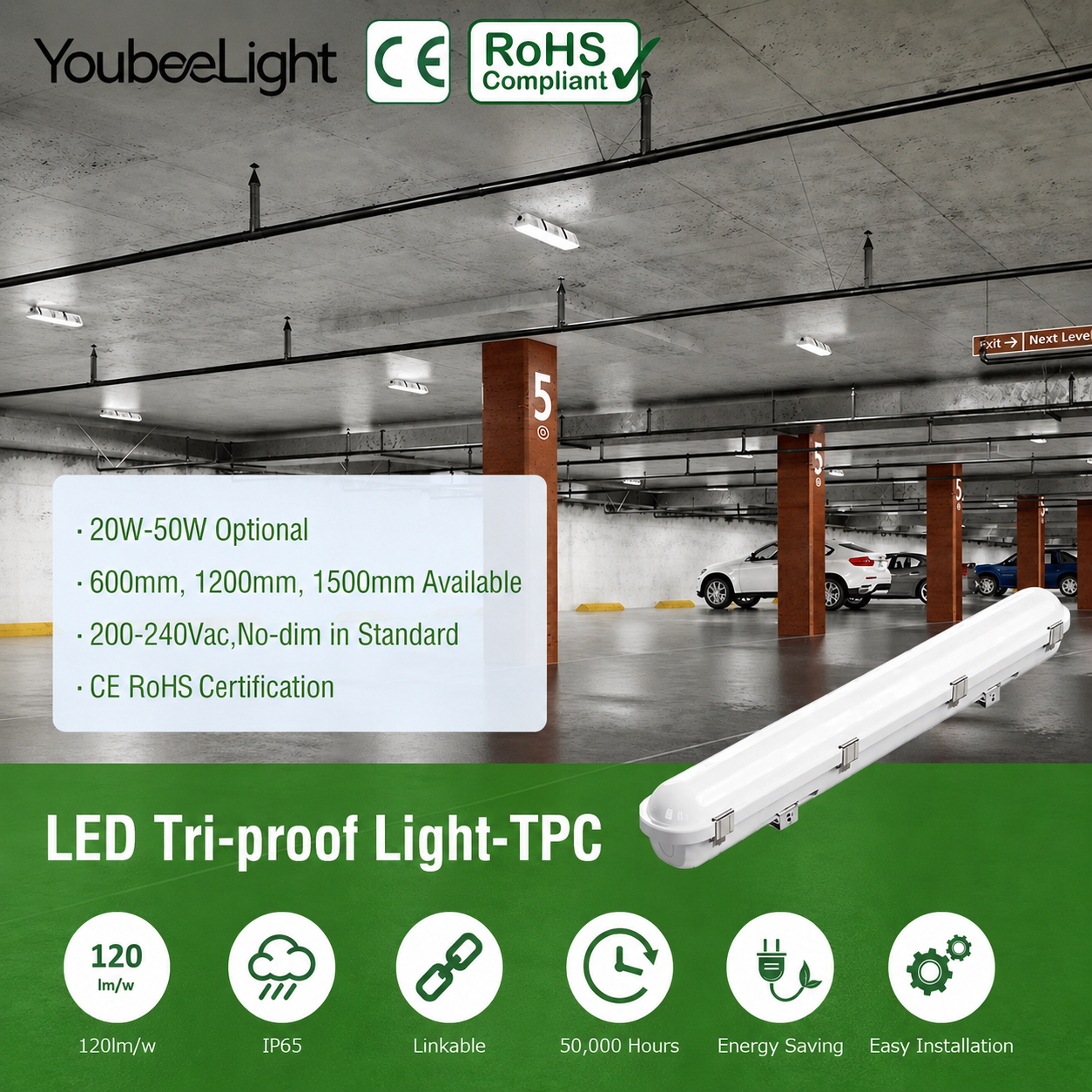

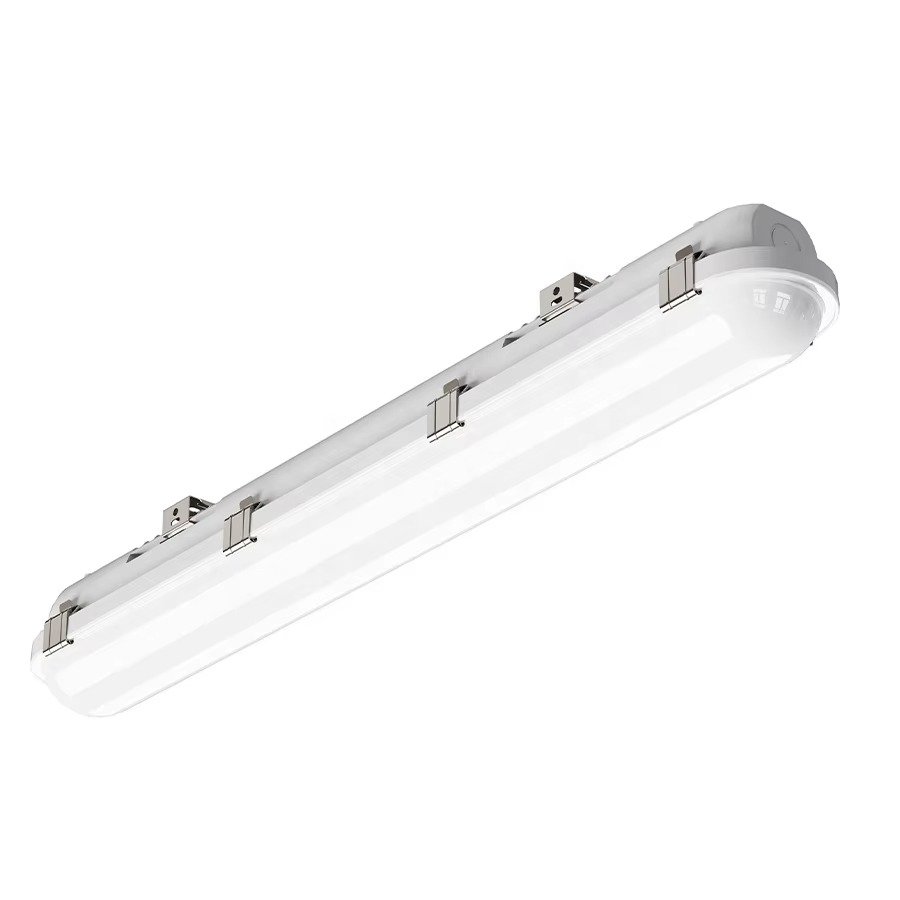

LED Tri-Proof Light — Waterproof, Dustproof & Corrosion-Resistant
Industrial-grade IP65 / IP66 LED tri-proof fixtures for demanding environments. Ideal for food processing, cold storage, car parks, warehouses and commercial facilities across North America, Europe and Australia.
Fixture Length
Wattage
Color Temperature
Free samples available · Ships within 7–14 days · MOQ: 50 pcs
Electrical
| Wattage | 18W / 24W / 36W / 48W / 60W / 72W |
| Input Voltage | 100–277V AC, 50/60Hz |
| Power Factor | ≥ 0.95 |
| THD | ≤ 15% |
| Efficacy | Up to 160 lm/W |
| Luminous Flux | 2,880 – 11,520 lm |
| Color Temperature | 3000K / 4000K / 5000K / 6500K |
| CRI | Ra ≥ 80 (Ra ≥ 90 available) |
Physical

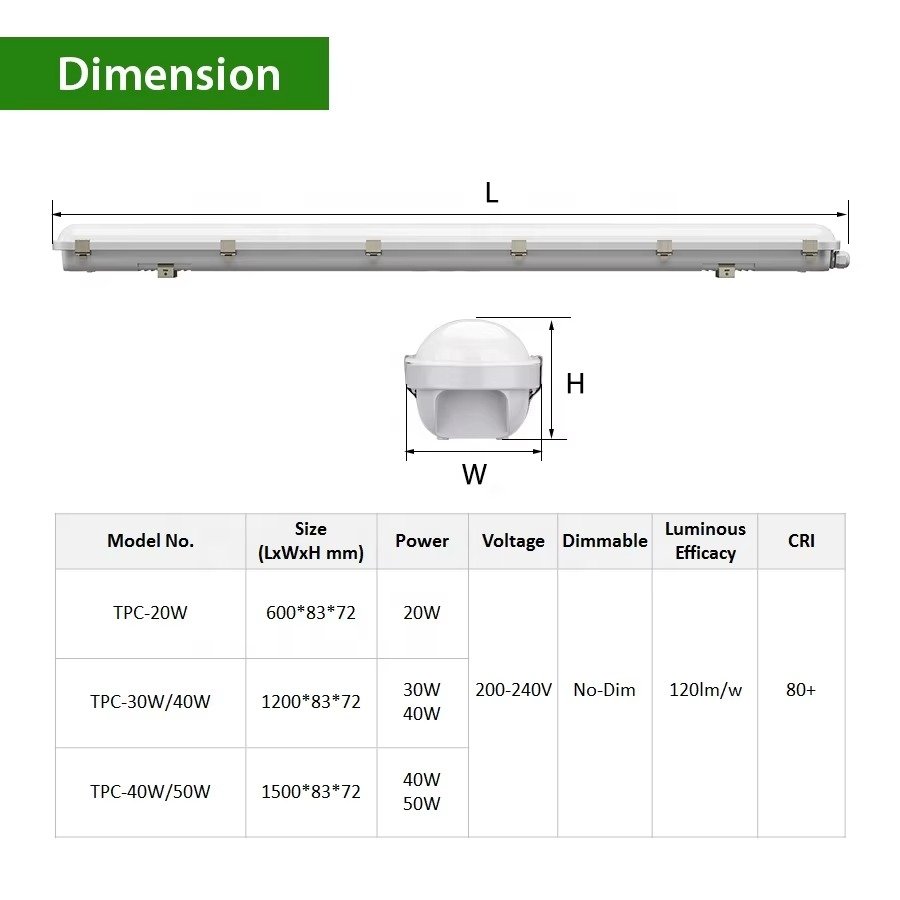

| Length | 600mm / 1200mm / 1500mm |

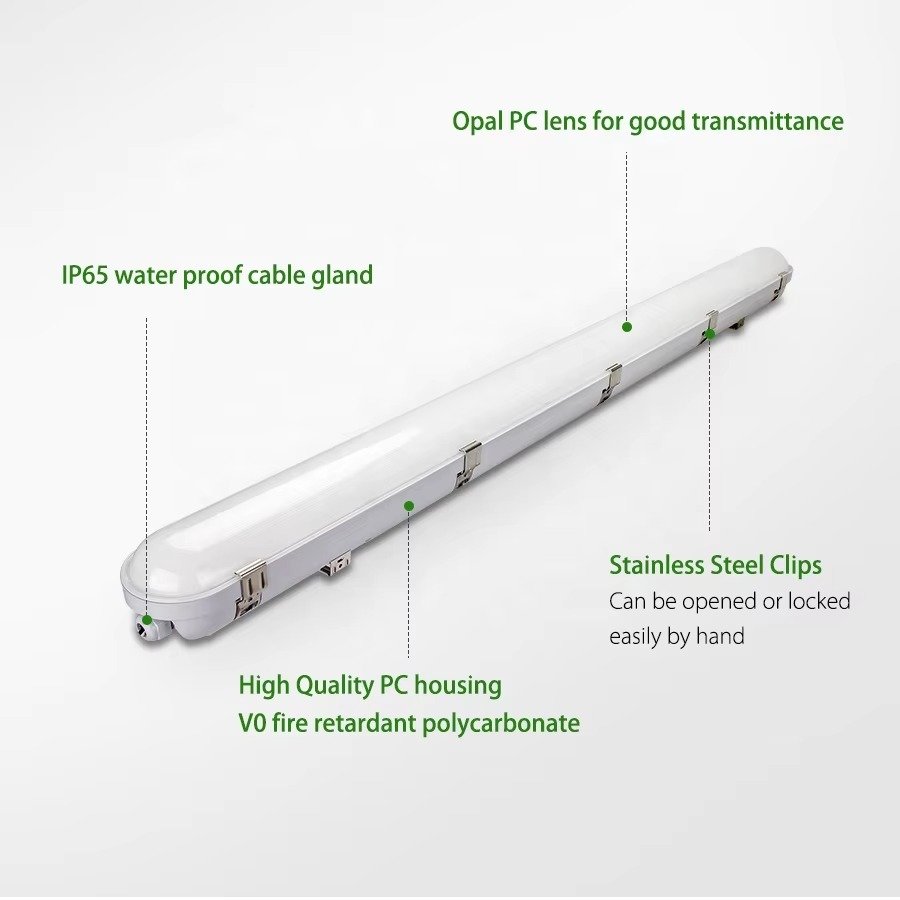

| Housing Material | PC + Aluminium alloy |
| Diffuser | Milky PC / Clear PC / Frosted PC |
| IP Rating | IP65 / IP66 |
| Impact Rating | IK08 |
| Ambient Temp. | -25°C to +45°C |
| Housing Color | White / Grey (custom available) |
| Net Weight | 1.2 – 2.8 kg |
Performance
| Lifespan | ≥ 50,000 hours (L70) |
| Warranty | 5 years |
| Beam Angle | 120° (standard) |
| Dimming | 0–10V / DALI / Triac (optional) |
| Flicker | < 1% (Flicker-free) |
| Start Time | < 0.5 sec |
Compliance
| Certifications | CE, RoHS, TÜV, SAA |
| EMC Standard | EN 55015, EN 61547 |
| Safety Standard | EN 60598, IEC 62471 |
| Surge Protection | 4kV (optional 10kV) |
| LED Chip | Lumileds / Osram / Samsung |
| Driver Brand | SOSEN / Inventronics / Meanwell |
IP65 / IP66 Waterproof
Full protection against dust ingress and powerful water jets. Suitable for wet areas, washdown environments and outdoor covered spaces.
IK08 Impact Resistant
Polycarbonate housing withstands 5 joules of impact energy — ideal for industrial environments where mechanical damage is a risk.
Up to 160 lm/W Efficacy
Premium LED chips and optimised thermal management deliver industry-leading efficacy, reducing energy consumption by up to 60% vs fluorescent.
Wide Temperature Range
Operates reliably from -25°C to +45°C ambient. Fully rated for cold storage, freezer rooms and refrigerated warehouses.

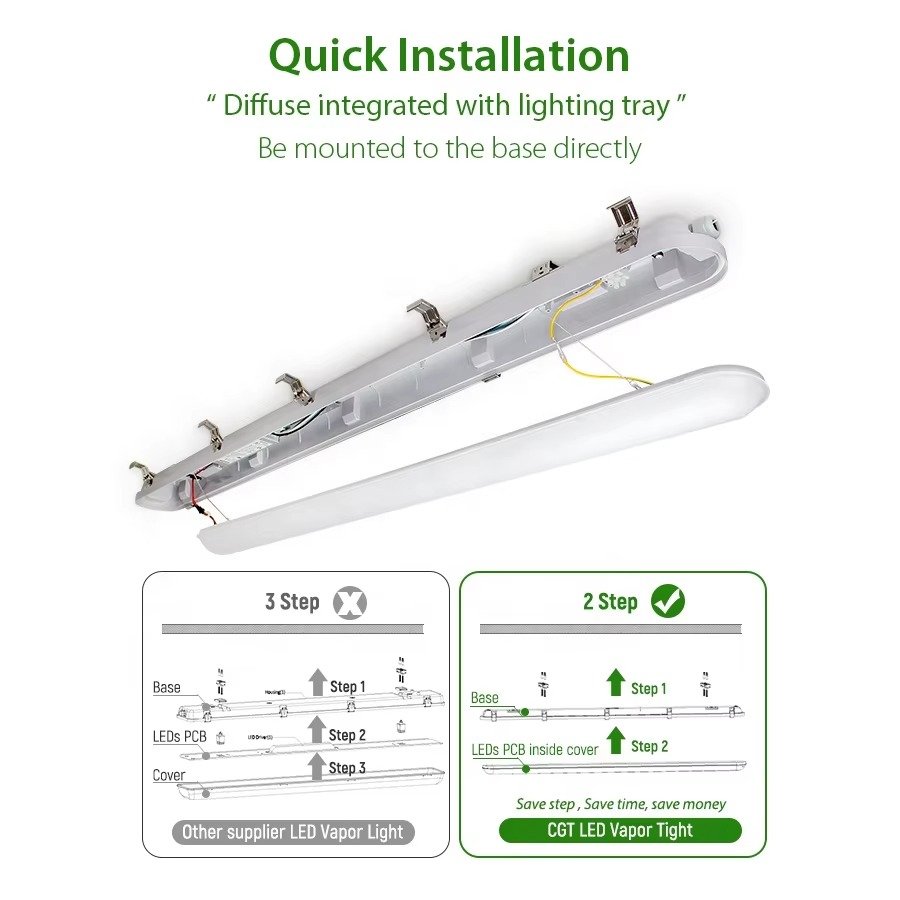

Tool-Free Installation

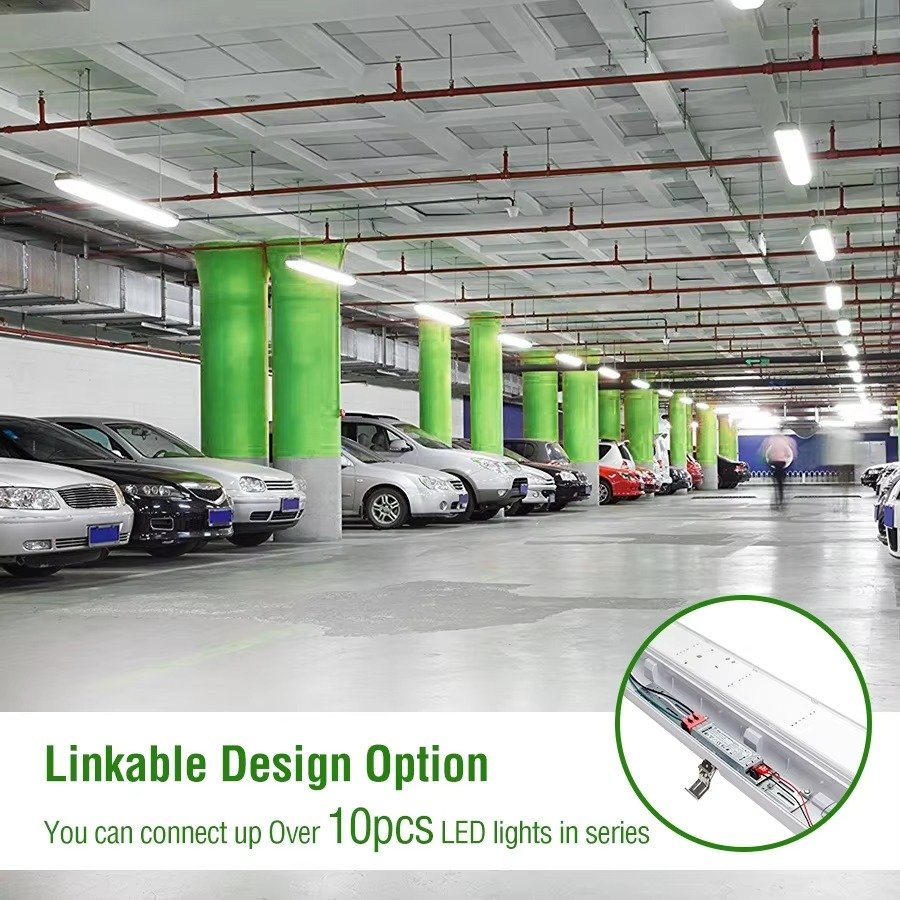

Plug-and-play through-wiring design. Surface mount or suspended installation in under 5 minutes. Compatible with standard conduit systems.
Flicker-Free Operation
Less than 1% flicker at all dimming levels. Fully compliant with SL1 and SL2 IEEE standards for flicker-safe lighting environments.
OEM / Private Label
Custom wattage, CCT, housing colour and branding available. Full private label service with rapid sampling (7–14 days).
Global Certifications
CE, RoHS, TÜV and SAA certified as standard. Additional certifications (DLC, ETL, CB) available on request for specific markets.
50,000 Hour Lifespan
L70 rated lifespan means 50,000 hours of reliable operation — reducing maintenance costs and lamp replacement in hard-to-reach areas.
The YBL-TP series is engineered for environments where conventional lighting fails. Trusted by distributors across 50+ countries for the most demanding applications.
Food Processing Plants
Cold Storage & Freezers
Multi-Storey Car Parks
Supermarket Back Areas
Industrial Warehouses
Wash-Down Facilities
Swimming Pool Areas
Hospital Corridors
School & Stairwells
Tunnels & Underpasses
Chemical Facilities
Marine & Offshore
All models available in 3000K / 4000K / 5000K / 6500K. Custom wattage and CCT on request. Contact us for pricing.
| Model No. | Length | Wattage | Lumens | Efficacy | IP Rating | Dimming | Certifications |
|---|---|---|---|---|---|---|---|
| YBL-TP-218 | 600mm (2ft) | 18W | 2,880 lm | 160 lm/W | IP65 | Optional | CE, RoHS |
| YBL-TP-224 | 600mm (2ft) | 24W | 3,840 lm | 160 lm/W | IP65 | Optional | CE, RoHS |
| YBL-TP-436 | 1200mm (4ft) | 36W | 5,760 lm | 160 lm/W | IP65/66 | 0–10V / DALI | CE, RoHS, TÜV |
| YBL-TP-448 | 1200mm (4ft) | 48W | 7,680 lm | 160 lm/W | IP65/66 | 0–10V / DALI | CE, RoHS, TÜV |
| YBL-TP-460 | 1200mm (4ft) | 60W | 9,600 lm | 160 lm/W | IP65/66 | 0–10V / DALI | CE, RoHS, TÜV, SAA |
| YBL-TP-548 | 1500mm (5ft) | 48W | 7,680 lm | 160 lm/W | IP65/66 | 0–10V / DALI | CE, RoHS, TÜV |
| YBL-TP-560 | 1500mm (5ft) | 60W | 9,600 lm | 160 lm/W | IP65/66 | 0–10V / DALI | CE, RoHS, TÜV, SAA |
| YBL-TP-572 | 1500mm (5ft) | 72W | 11,520 lm | 160 lm/W | IP66 | 0–10V / DALI | CE, RoHS, TÜV, SAA |
* Lumen output may vary ±5%. Custom wattage, CCT, diffuser and dimming protocol available on request. Minimum order quantity: 50 pcs per model.
📄 Product Datasheet
Full technical specifications, photometric data and installation guide for YBL-TP Series
📋 CE & RoHS Declaration
Declaration of conformity and RoHS compliance certificate for EU markets
💡 IES Photometric File
IES files for lighting design software (Dialux, Relux, AGi32)
📦 Full Product Catalog
Complete YouBeeLight LED product catalog — all 8 categories, 500+ models
