YBL720W-8B

LED GROW LIGHT
Commercial Grade
720W | 2.7 μmol/J | 1944 μmol/s PPF

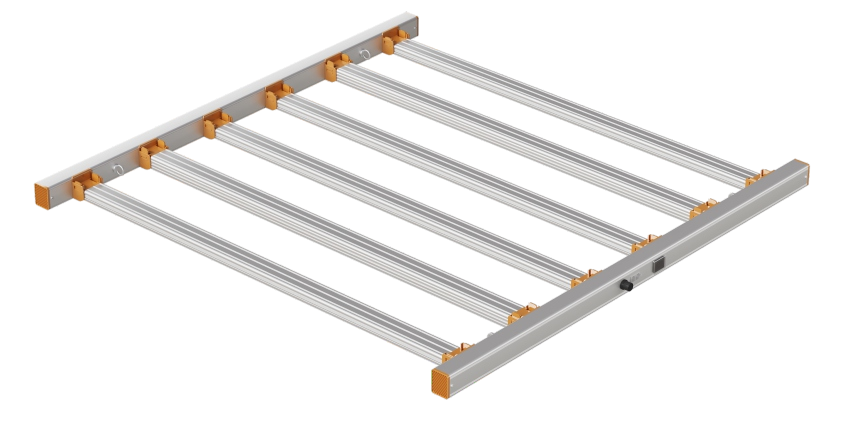

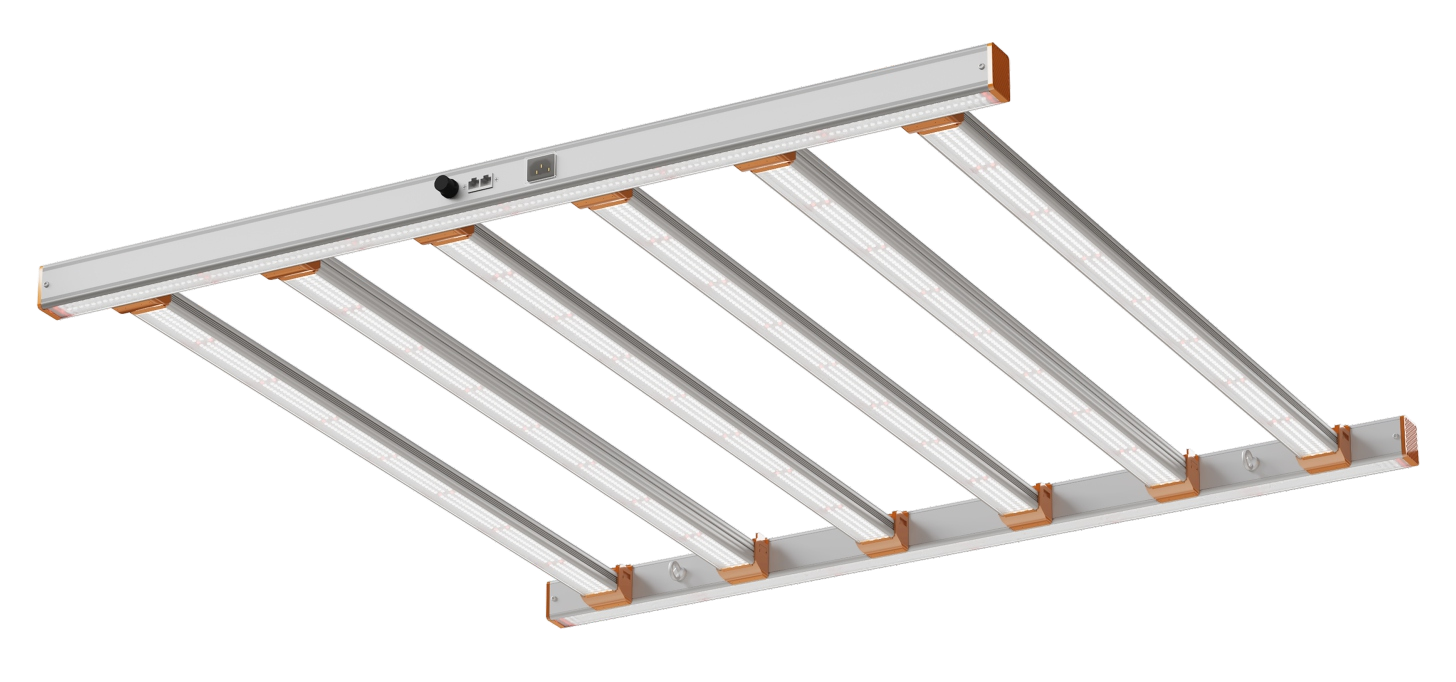

YBL720W-8B LED Grow Light

THE REASON WHY WE DEVELOP YBL720PRO

"Growers, distributors, and e-commerce sellers: You know these challenges all too well!"

Non-uniform PPFD
📉

Non-uniform PPFD Distribution

Uneven light coverage causes poor plant growth and inconsistent yields across the canopy

Installation Nightmare
🔧

Complex Installation & Warranty

Hours of wiring, tools required, and nightmare warranty claims when one strip fails

High Logistics
📦

High Logistics Overhead

Bulky packaging drives up shipping costs and warehouse storage fees by 50%

High Price Poor ROI
💸

High Price, Poor ROI

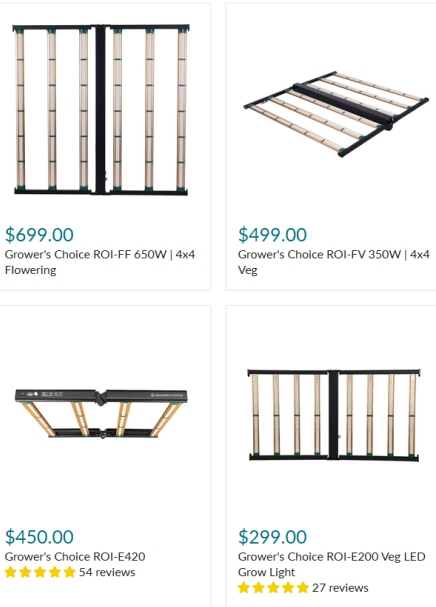

Competitors charge $450-$699 with limited returns and no modular flexibility

MODULAR DESIGN
10-SECOND INSTALL

"Push. Lock. Grow." No tools, no wiring, no hassle.

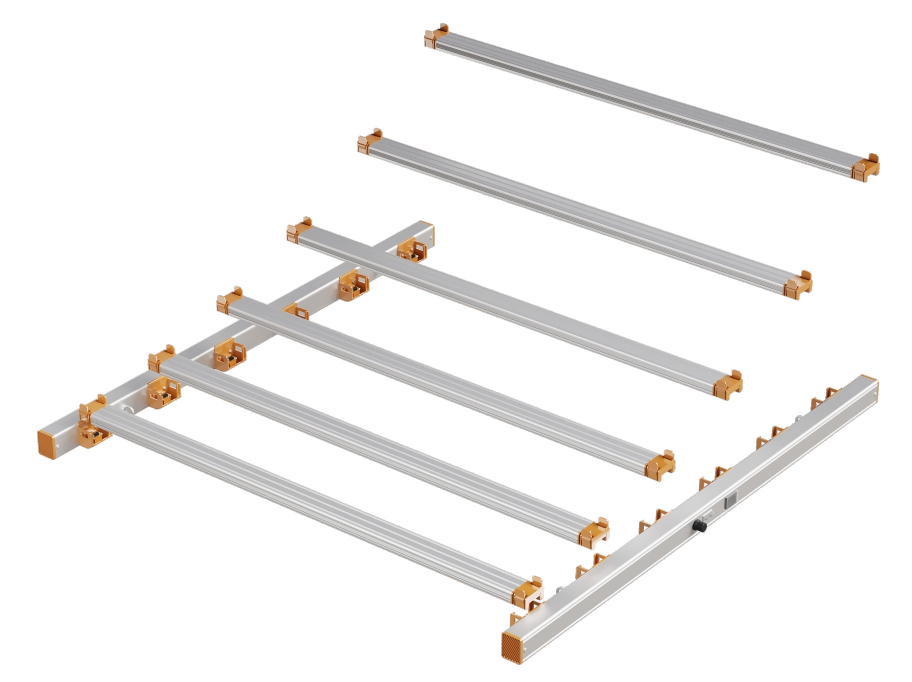

Modular Design - Exploded View

DUAL-SIDE LIGHTING TECHNOLOGY

Ensuring uniform lighting distribution across the entire growing area

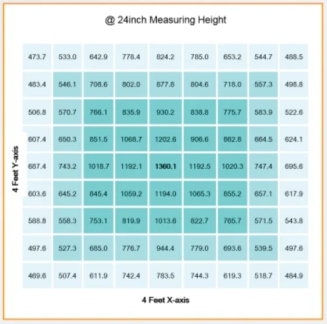

PPFD Distribution Map

2m × 1.2m @ 30cm | Edge PPFD increased by 100%

🔧

90% Lower Repair Costs

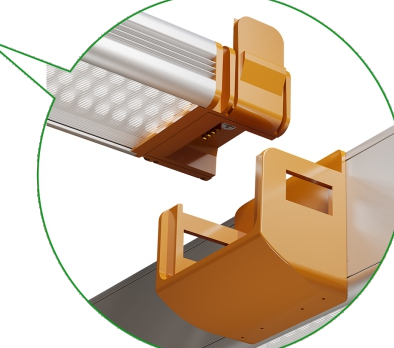

"Bad strip? Replace ONE, not the whole unit." Modular design means individual bar replacement without dismantling the entire fixture.

🔗

Click & Connect Scalability

Plug & play design for faster setup. Build 2.4m light arrays with simple connections. One controller manages 1000+ lights.

💡

Prism Diffuser Technology

Prismatic diffuser increases 20% light spread and 100% shock protection. Transparent PC cover or glue coating options.

💧

All-Environment Ready

Industrial-grade waterproof RJ ports for high-humidity environments. IP54 rated with corrosion-resistant connections.

📏

Rigid Straight-Bar Design

"Zero sagging, 100% level lighting." Unlike foldable lights, ours stay perfectly straight — 180° rigid aviation-grade aluminum.

🌡️

Extended Lifespan

Heavier aviation-grade cooling aluminum for minimal light decay. Superior passive thermal management ensures years of consistent performance.

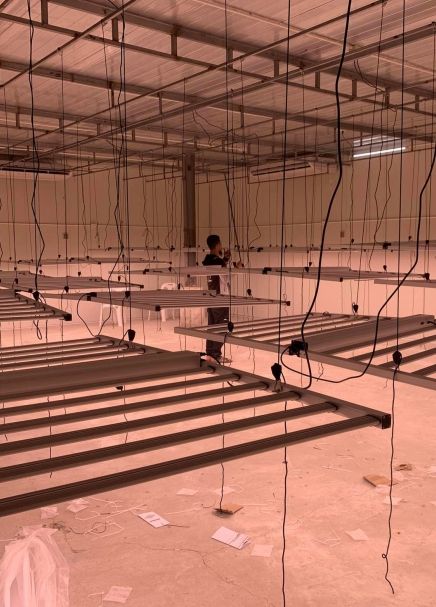

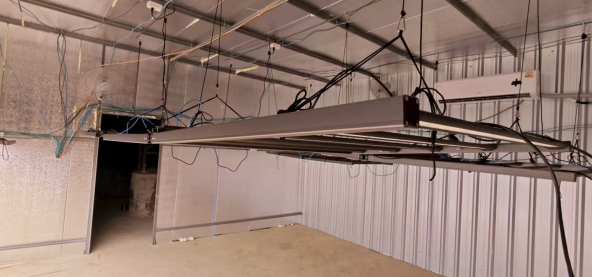

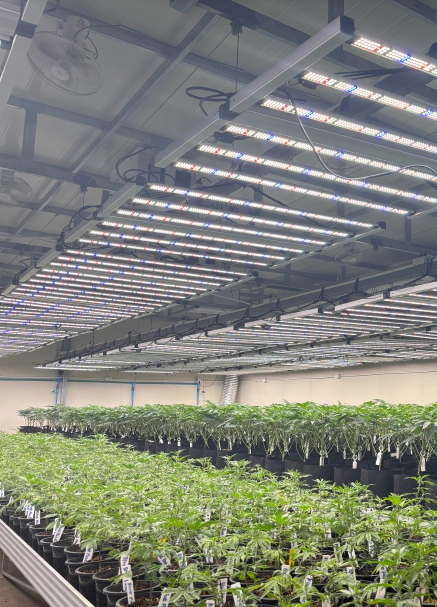

Real Application - Grow Room Installation

REAL WORLD RESULTS

100%

DAISY-CHAIN SCALABILITY

One controller for over 1000 lights. Professional growers trust our rigid straight-bar design for consistent, uniform coverage across large commercial operations.

FULL SPECTRUM

3000K + 5000K + 660nm + 730nm | Custom spectrums available

LED Spectrum Chart

HALF THE FREIGHT, DOUBLE YOUR SALES

"Ship more, store less, profit more." 50% shipping cost and warehouse space saved.
Competitor

Traditional Packaging

Competitor Bulky Packaging
1 pcs / CTN
1170 × 598 × 235mm
Higher freight costs
More warehouse space
Youbeelight

Torah720 Pro's Package

Our Compact Packaging
2 pcs / CTN
1160 × 420 × 170mm
Compact flat-pack design
✓ 50% Space Saved

TECHNICAL SPECIFICATIONS

YBL720W-8B Technical Data
ModelYBL720W-8B
Lamp Size115 × 110 × 5.4 cm
LED Quantity2688W + 168R (6+2 bars)
LED BrandLEDESTAR
Spectrum3000K + 5000K + 660nm + 730nm
Rated Wattage720W @ 240V
AC Input Voltage200-277V AC, 50/60 Hz
PPF Efficacy2.7 μmol/J
Light Output PPF1944 μmol/s
Light Distribution120°
Thermal ManagementPassive
Max. Ambient Temp.45°C / 113°F
Dimming Function0-10V Knob Dimming
Mounting Height>6" (15.2cm) above canopy
Coverage Area5ft × 5ft (1.5m × 1.5m)
IP RatingIP54
Warranty3 Years

PACKING & LOGISTICS

Configuration Carton Size Gross Weight 20GP Container 40HQ Container
1 pcs / ctn 116 × 22 × 16 cm 6.5 kg 680 pcs 1,650 pcs
2 pcs / ctn 116 × 40 × 16 cm 13.5 kg 720 pcs 1,800 pcs

PRODUCT DIMENSIONS

Product Dimension Drawing

Ready to Upgrade Your Grow?

Contact us for wholesale pricing, OEM/ODM services, and distributor partnerships.
