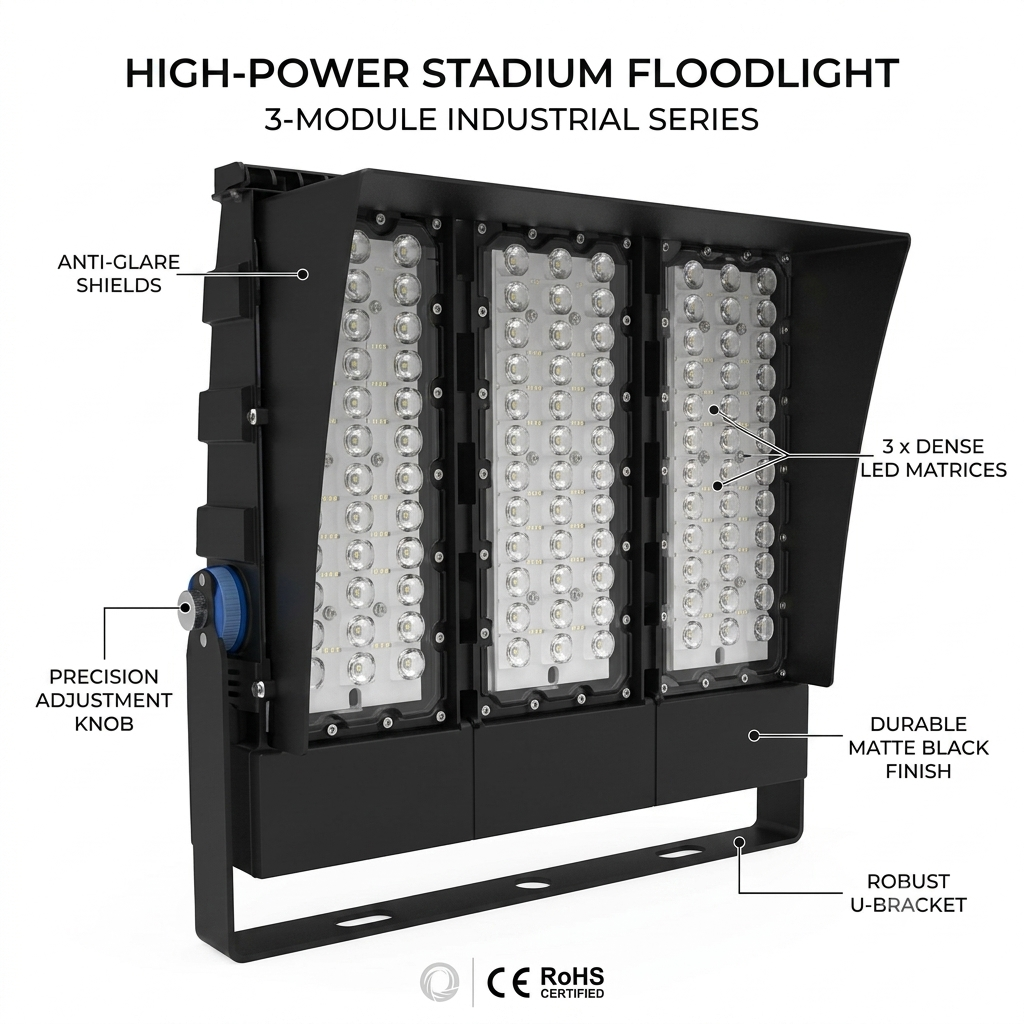

YOUBEELIGHT Stadium Light Type C (200-500W)

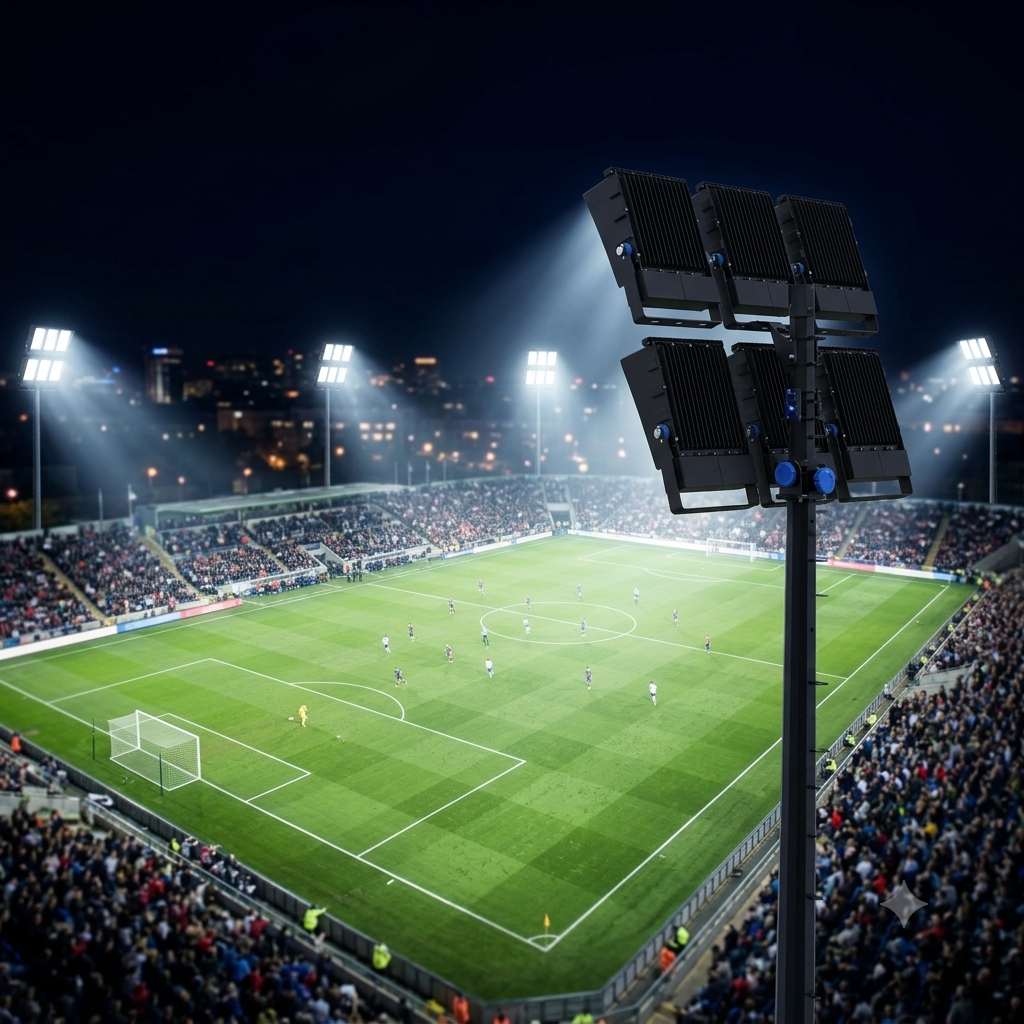

The YOUBEELIGHT Stadium Light Type C (200-500W) is designed for outdoor and project lighting applications where stable output, durable housing, and efficient LED performance are required.
Features
- Using high light efficiency patch LED5050 light source, uniform light, the whole lighting efficiency ≧130LM/W, color rendering index Ra > 80, good heat dissipation, low light decay.
- The product adopts ACD12 die-casting forming, multi-module splicing,independent heat dissipation, better performance.
- Various optical angles, including TYPE II, TYPE III, TYPE IV, TYPE V,NEMA4, NEMA6.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC100-240V |
| Color Rendering Index | Ra>80 |
| Frequency Range | 50-60Hz |
| Beam Angle | TYPE II,TYPE III |
| Power Factor | >0.95 |
| Luminous Decay Rate | 1-3% / 1,000Hrs |
| Power Efficiency | >90% |
| Color Temperature | 3000-6500K |
| LED Working Voltage | DC36-42V |
| Working Temperature | 20 deg C-+45 deg C LED Power |
| IP Grade | IP65 |
| Luminous Efficiency | 130lm / W |
| Working Lifespan | >50000H |
| Power Line | VDE 3×1.5mm2 |
