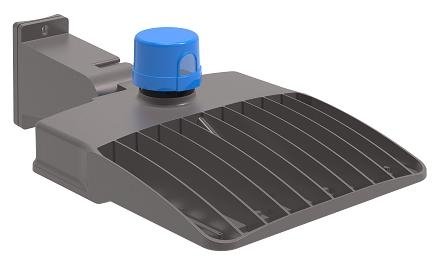

YOUBEELIGHT Area Shoebox Light (80-300W)
The YOUBEELIGHT Area Shoebox Light (80-300W) is designed for outdoor and project lighting applications where stable output, durable housing, and efficient LED performance are required.
Features
- Thicker Casting aluminum shell ( ADC12 ).
- SOSEN power driver,high luminous efficiency with LUMILEDS 140lm/W.
- 90% transmittance PC lens (TYPE-3,TYPE-4,TYPE-5).
- 2.0w/m.k thermal conductivity aluminum board.
- High pure silicon waterproof circle.
- Can be equipped with NEMA interface light sensor.
- IP66 waterproof driver box; Parameters Input Voltage AC100-240V Color Rendering Index Ra>80 Frequency Range 50-60Hz Beam Angle Type 3/4/5 Power Factor >0.95 Luminous Decay Rate 1-3% / 1,000Hrs Power Efficiency >90% LED Color Temperature 3000-6500K LED Working Voltage DC36-42V Working Temperature -20 deg C-+45 deg C LED Power – IP Grade IP65 Luminous Efficiency 140lm / W Working Lifespan >50000H Power Line VDE 3×1.0mm2.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC100-240V |
| Color Rendering Index | Ra>80 |
| Frequency Range | 50-60Hz |
| Beam Angle | Type 3/4/5 |
| Power Factor | >0.95 |
| Luminous Decay Rate | 1-3% / 1,000Hrs |
| Power Efficiency | >90% |
| Color Temperature | 3000-6500K |
| LED Working Voltage | DC36-42V |
| Working Temperature | 20 deg C-+45 deg C LED Power |
| IP Grade | IP65 |
| Luminous Efficiency | 140lm / W |
| Working Lifespan | >50000H |
| Power Line | VDE 3×1.0mm2 |
