Direct answer: LED lighting surge protection is a coordinated system, not a single kV number. Buyers must identify the electrical environment, luminaire surge-immunity test, protection modes, system voltage and grounding, then coordinate service-, panel- and luminaire-level surge protective devices. The SPD must be correctly rated, certified for its market and installed with short, properly routed conductors.
Why LED Lighting Needs a Surge Strategy
Commercial LED luminaires contain electronic LED drivers, control interfaces and sometimes sensors or network nodes. Transient overvoltages can damage these components immediately or stress them in ways that produce later failures. Outdoor circuits, long conductors, exposed poles, switching loads and lightning-prone locations can increase risk, but indoor equipment is not automatically immune.
The financial consequence is larger than the price of an SPD; include failures and access costs when you calculate commercial lighting lifecycle cost. A failed high-bay or roadway luminaire may require a lift, lane closure, service crew, recommissioning and business interruption. For an importer or wholesaler, unclear protection requirements can also create warranty disputes: the luminaire supplier, SPD supplier and installer may each assume another party owned the risk.
A good procurement specification defines the environment and protection architecture before asking for a product rating.
Three Different Questions Buyers Often Mix Together
| Question | Typical evidence | What it establishes | What it does not establish |
|---|---|---|---|
| How much transient stress can the luminaire withstand? | Luminaire test report to a named method and level | Tested immunity of the submitted configuration | Protection against every site event |
| Is the standalone SPD suitable as an electrical product? | Applicable certification/listing and ratings | Evaluation of the SPD for stated use and market | Correct coordination or installation at the project |
| Is the facility adequately protected? | Electrical design, risk assessment, coordination and installation inspection | System-level protection strategy | Guaranteed absence of equipment failure |
Do not treat these as interchangeable. A luminaire may include internal surge protection and still benefit from upstream protection. Conversely, a panel SPD does not prove that the luminaire itself was tested to the project’s required immunity level.

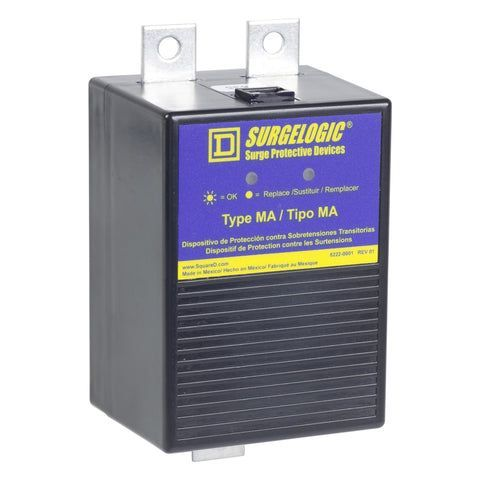

What Is a Surge Protective Device?
A surge protective device, or SPD, is designed to limit transient overvoltage and divert surge current. It operates during a short-duration event; it is not a general solution for sustained overvoltage, undervoltage, incorrect wiring, poor grounding, harmonics or every power-quality problem.
This distinction is important. IEEE C62.41.3 addresses interactions between power-system disturbances and SPDs, while IEEE C62.41.2 characterizes short-duration surge environments and waveforms. If a site has repeated driver failures, investigate the electrical system instead of assuming that a larger SPD rating will solve the cause.
Standards and Market Context
Standards must be selected for the destination market and application. As of this review:
- IEEE C62.41.2-2025 characterizes surges on low-voltage AC power circuits using standardized waveforms and stress parameters. It is a recommended practice, not a universal luminaire pass level.
- ANSI C136.2-2018, listed by the U.S. Department of Energy, addresses dielectric withstand and electrical transient immunity for roadway and area lighting equipment. The project must verify whether a newer revision or specific authority requirement applies.
- UL 1449 covers surge protective devices in the North American product-safety context. A UL certification record can include ratings such as voltage protection rating, maximum continuous operating voltage, nominal discharge current and short-circuit current rating.
- IEC 61643-11:2025, used with IEC 61643-01:2024, covers SPDs connected to AC low-voltage power systems. The 2011 edition was withdrawn in 2025.
- IEC 61643-12:2020 describes selection, operation, location and coordination principles for SPDs on low-voltage AC systems.
These documents have different scopes. Citing “IEEE,” “UL” or “IEC” without a standard number, edition, test level, product identity and report is not sufficient technical evidence.
How to Read a Luminaire Surge-Immunity Claim
A claim such as “10 kV surge protected” is incomplete. At minimum, ask:
- Which standard and edition were used?
- What waveform was applied?
- What open-circuit voltage and short-circuit current were associated with the test generator?
- Which coupling modes were tested: line-to-line, line-to-neutral, line-to-ground or neutral-to-ground as applicable?
- How many positive and negative impulses were applied, at which phase angles and repetition interval?
- What was the pass/fail criterion?
- Was the complete offered luminaire tested, or only its driver or SPD component?
- Did the tested model match wattage, driver, control option and wiring class of the quotation?
Voltage alone does not describe surge energy or the test setup. Two products labeled with the same kV value may have been evaluated using different current levels, modes, repetitions or criteria.
Common-mode and differential-mode protection
In simplified terms, differential-mode stress appears between current-carrying conductors, while common-mode stress appears between current-carrying conductors and protective earth. The relevant modes depend on circuit topology, grounding and equipment construction.
Do not specify modes by copying a generic diagram. The electrical designer or qualified contractor should confirm the actual supply system and required protective paths. An SPD connected for the wrong system can be ineffective or unsafe.
Key SPD Ratings Procurement Teams Should Understand
Maximum continuous operating voltage
MCOV is the maximum continuous voltage that may be applied to the SPD under its defined conditions. It must suit the actual system voltage, wiring configuration and expected voltage variation. Selecting an MCOV too close to normal operating peaks or temporary overvoltage conditions can cause premature operation or failure; selecting protection only by a high MCOV may reduce protective performance.
Voltage protection rating or protection level
This indicates the limited voltage under specified test conditions. Terminology and evaluation differ by standard system, so values should be compared only when derived under compatible requirements. A lower number is not automatically better if voltage, modes, current rating or installation category do not match.
Nominal and maximum discharge current
Current ratings describe performance under defined waveforms and test procedures; they are not a prediction of the exact lightning current that will flow through the device in service. Ask which rating is being stated and under which standard.
Short-circuit current rating
For applicable North American installations, SCCR is a critical safety coordination parameter. The SPD must be suitable for the available fault current and overcurrent-protection arrangement. This belongs in the electrical design review, not only the lighting submittal.
Temporary overvoltage behavior
A temporary overvoltage lasts longer than a transient surge and may result from faults or power-system conditions. Verify the SPD’s relevant behavior and the system design; a device intended to clamp short impulses is not automatically a remedy for sustained abnormal voltage.
End-of-life indication and disconnect
SPDs can degrade after repeated stress. Depending on the product and location, buyers may require a visual indicator, remote status contact, thermal disconnect, replaceable module or defined failure mode. The maintenance team must be able to see and act on the status.
A Layered Protection Architecture
Protection is commonly coordinated across more than one location:

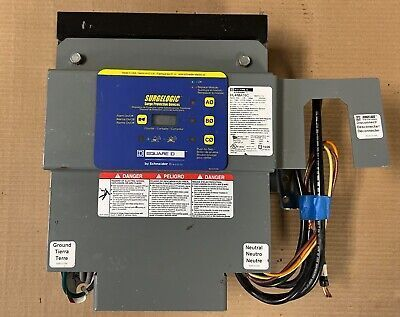

- Service or main distribution level: Reduces large incoming transients and supports facility-wide protection.
- Distribution panel or branch level: Further limits residual stress closer to lighting circuits.

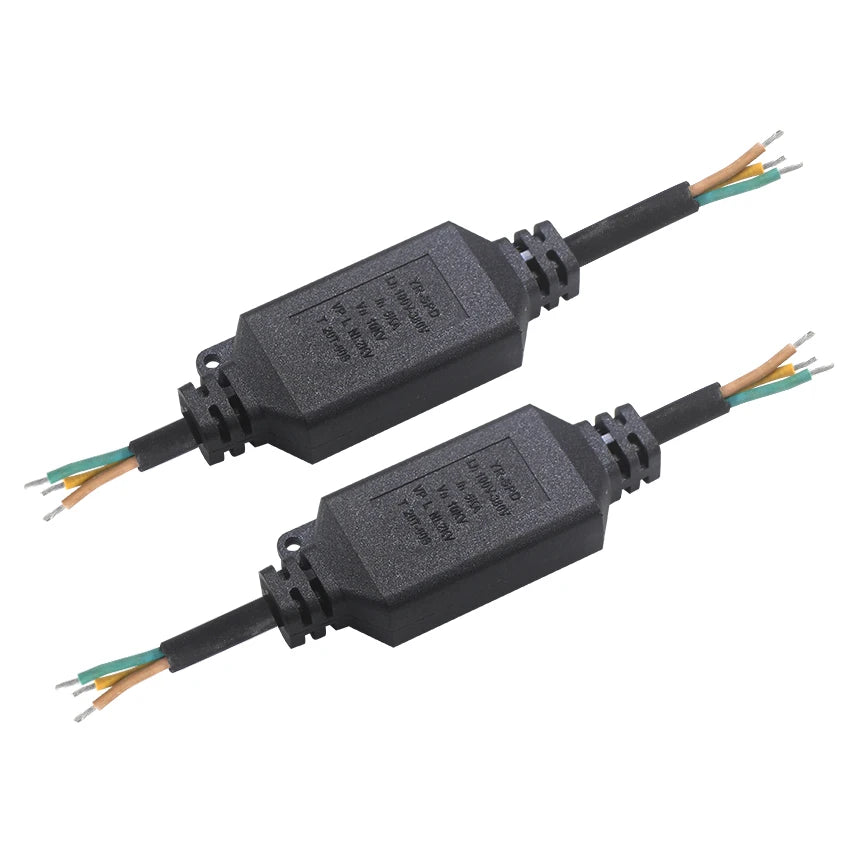

- Luminaire level: Protects the local driver and electronics and can address transients generated or coupled near long branch conductors.
- Control and communication ports: May need separately appropriate protection; an AC-power SPD does not automatically protect DALI, 0–10 V, Ethernet or other signal wiring.
The correct layers depend on risk, building electrical design and local code. More devices do not automatically mean better protection. Coordination, conductor routing, protective levels, grounding and device compatibility determine the result.
Why Installation Can Defeat a Good SPD
An SPD works by carrying a fast transient current. Connection impedance—including conductor length, bends and routing—adds voltage during that event. Long leads can therefore increase the voltage seen by the equipment.
UL guidance for industrial-control-panel applications states that SPD conductors should not be longer or have more bends than required. The same practical lesson applies broadly: position and wire the device according to its instructions and the project’s electrical design.
Installation review should confirm:
- correct conductors and terminals;
- shortest practical connection path;
- appropriate overcurrent protection;
- compatible grounding and bonding;
- environmental enclosure rating;
- separation and routing required by the manufacturer;
- status visibility and replacement access;
- protection of control/data paths where required.
Only qualified personnel should design or install mains-voltage surge protection.
Buyer’s Decision Table
| Procurement input | Question to answer | Evidence to request | Owner |
|---|---|---|---|
| Supply system | Voltage, phases, grounding and frequency? | Single-line diagram and site survey | Electrical designer |
| Surge environment | Exposure, conductor length, lightning and switching risks? | Project risk assessment | Designer/owner |
| Luminaire immunity | Which modes, waveforms and levels were passed? | Complete test report for offered configuration | Luminaire supplier |
| SPD suitability | Correct MCOV, protection level, current and SCCR? | Data sheet and applicable certification record | SPD supplier/designer |
| Coordination | How do upstream and local devices work together? | Coordination schedule/calculation | Electrical designer |
| Installation | Where and how will each SPD be connected? | Shop drawings and instructions | Contractor |
| Maintenance | How will degradation or disconnection be detected? | Indicator/contact and replacement plan | Facility owner |
| Change control | Can driver, SPD or wiring change after approval? | Approved BOM and notification clause | Manufacturer/importer |
Common Specification Mistakes
- Specifying only “10 kV” without waveform, current, mode, repetitions or pass criterion.
- Treating driver component immunity as complete-luminaire test evidence.
- Assuming an internal luminaire SPD replaces building-level protection.
- Selecting MCOV without confirming system voltage and grounding.
- Ignoring available fault current and required SCCR.
- Adding a remote SPD with long, poorly routed leads.
- Using a withdrawn edition as the current international requirement.
- Calling a product “UL approved” without verifying the exact model and certification category.
- Ignoring controls and data ports.
- Promising “lightning-proof” performance.
Procurement Recommendations
- Have the electrical designer define the site environment and protection architecture.
- State the required standard, edition, waveform, modes, levels and acceptance criteria.
- Require test reports for the exact luminaire, driver and SPD configuration offered.
- Verify standalone SPD certification in the relevant official database.
- Compare MCOV, protection level, current ratings, SCCR and temporary-overvoltage behavior—not kV alone.
- Include installation drawings, conductor-length limits and grounding requirements.
- Specify status indication, inspection interval and replacement responsibility.
- Control substitutions of drivers, SPDs, control nodes and wiring.
- Investigate repeated failures for sustained power-quality or grounding problems.
- Never describe a lighting system as immune to all lightning events.
Frequently Asked Questions
Is a higher kV surge rating always better?
No. A useful comparison also requires waveform, associated current, modes, repetitions, acceptance criteria and the exact tested product. The selected protection must fit the actual electrical system.
Does an IP66 luminaire have good surge protection?
Not necessarily. IP ratings address enclosure protection against access, dust and water under defined tests. Surge immunity is a separate electrical characteristic requiring separate evidence.
Is an internal SPD enough for outdoor LED lighting?
It depends on the site risk and electrical design. Coordinated upstream and local protection may be needed. The internal device does not replace a facility or roadway-system assessment.
Can an SPD protect against sustained overvoltage?
An SPD is primarily intended to limit transient overvoltage. Sustained or temporary overvoltage, incorrect voltage and wiring faults require appropriate system protection and diagnosis.
What should an importer request from a manufacturer?
Request the complete luminaire surge test, exact bill-of-material configuration, internal SPD data, driver evidence, wiring diagram, applicable certification records and change-notification commitment.
How often should an SPD be replaced?
There is no universal interval. Follow the manufacturer’s instructions, inspect status indicators or remote contacts, consider event history and environment, and replace devices that indicate loss of protection or fail inspection.
Conclusion
LED lighting surge protection is an engineering and procurement system: characterize the electrical environment, define luminaire immunity, select correctly rated and certified SPDs, coordinate protection layers and control installation quality. A transparent evidence package is more valuable than a large kV number because it shows what was tested, what is protected and which risks remain.
Key Takeaways, Definitions and Authoritative Sources
Independently citable conclusions
- A luminaire surge-immunity rating, a standalone SPD certification and a facility protection design answer three different questions and should not be treated as substitutes.
- A kV claim is incomplete without its waveform, associated current, coupling modes, repetitions, acceptance criterion and tested configuration.
- SPD selection must match system voltage, grounding, MCOV, protection level, available fault current and installation location.
- Short, correctly routed SPD connections are important because connection impedance can add to the voltage reaching protected equipment.
Definitions and applicability
- SPD: A device intended to limit transient overvoltage and divert surge current.
- MCOV: Maximum continuous operating voltage permitted for an SPD under defined conditions.
- SCCR: Short-circuit current rating applicable to the device’s safe use within a system.
- Common mode: Transient stress between current-carrying conductors and protective earth, subject to system topology.
- Differential mode: Transient stress between current-carrying conductors.
- Applicable to: Commercial and industrial LED lighting procurement. Final selection and installation require a qualified professional and compliance with local codes.
Primary authoritative sources
- IEEE Standards Association, IEEE C62.41.2-2025 overview
- IEEE Standards Association, IEEE C62.41.3-2020 scope
- International Electrotechnical Commission, IEC 61643-11:2011 page showing replacement by the 2025 edition
- International Electrotechnical Commission, IEC 61643-12:2020
- UL Solutions, Verifying Surge Protection Devices
- U.S. Department of Energy, Solid-State Lighting Metrics and Test Methods
