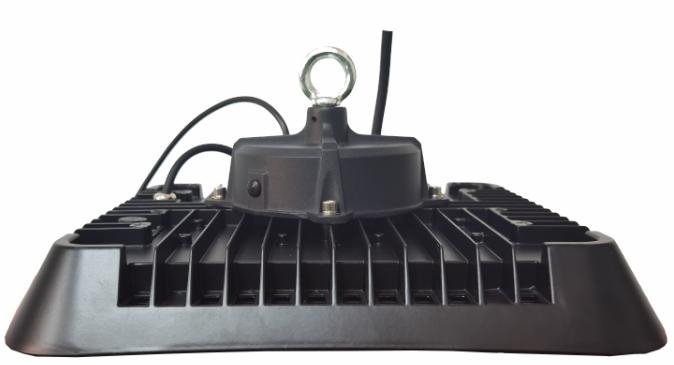

YOUBEELIGHT Square High Bay Light (60-200W)
The YOUBEELIGHT Square High Bay Light (60-200W) is designed for factories, warehouses, workshops, logistics centers, gyms, and other high-ceiling industrial spaces requiring efficient, durable LED lighting.
Features

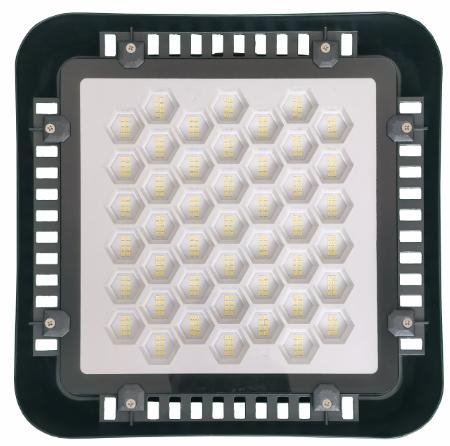

- Adopt 2835 LED light source, LED light efficiency>150LM/W, color rendering index Ra>80.
- Large-area one-piece die-cast aluminum shell, integrated whole light heat dissipation; transparent air duct design inside and outside,greatly improving heat dissipation performance and extending the life of the whole light.
- Adopt a wide-voltage input 10-240V non-isolated power supply, with higher efficiency and less heat generation.
- Using special waterproof joints and silicone ring sealing technology, the protection level reaches IP65.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC100-240V |
| Color Rendering Index | Ra>80 |
| Frequency Range | 50-60Hz |
| Beam Angle | 60°/90° /120° |
| Power Factor | >0.95 |
| Luminous Decay Rate | 1-3% / 1,000Hrs |
| Power Efficiency | >90% |
| Color Temperature | 3000-6500K |
| LED Working Voltage | DC180-240V |
| Working Temperature | 20 deg C-+45 deg C LED Power |
| IP Grade | IP65 |
| Luminous Efficiency | 150lm / W |
| Working Lifespan | >50000H |
| Power Line | VDE 3×1.0mm2 |
Models and Dimensions
| Model | Dimension(mm) |
|---|---|
| YBL-HBS2-60W | 263×263 |
| YBL-HBS2-80W | 263×263 |
| YBL-HBS2-100W | 263×263 |
| YBL-HBS2-120W | 315×315 |
| YBL-HBS2-150W | 315×315 |
| YBL-HBS2-200W | 315×315 |
