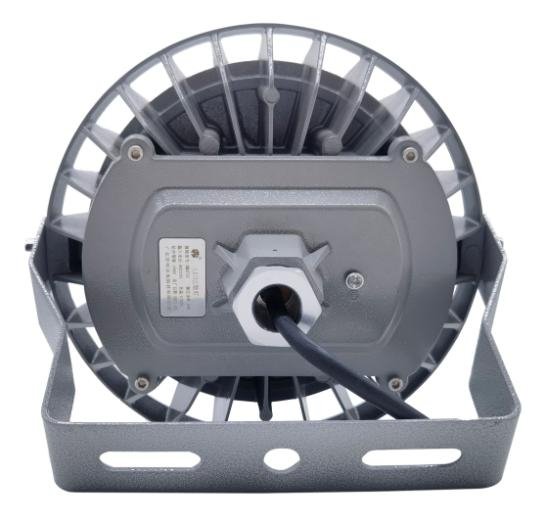

YOUBEELIGHT Round Tri-proof Light (20-200W)
The YOUBEELIGHT Round Tri-proof Light (20-200W) is built for wet, dusty, and corrosive industrial environments such as warehouses, parking garages, workshops, cold rooms, and utility areas.
Features
- The light source uses a first-line brand LED light chip, ultra- high light efficiency.
- The light source radiator is made of integrated die casting, with tight structure and excellent performance Good thermal and heat dissipation performance.
- The use of high strength optical grade PC material integrated injection molding, corrosion resistance Impact, high light transmittance.
- The lamp body adopts high voltage electrostatic spray treatment, with anti-corrosion, waterproof,Dust and other features, so that the lamp can be long-term stable in all kinds of harsh environments Set a job.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC100-240V |
| Color Rendering Index | Ra>80 |
| Frequency Range | 50-60Hz |
| Beam Angle | 140° |
| Power Factor | >0.95 |
| Luminous Decay Rate | 1-3% / 1,000Hrs |
| Power Efficiency | >90% |
| Color Temperature | 3000-6500K |
| LED Working Voltage | DC36-48V |
| Working Temperature | 20 deg C-+45 deg C LED Power |
| IP Grade | IP65 |
| Luminous Efficiency | 120lm / W |
| Working Lifespan | >50000H |
| Power Line | VDE 3×1.0mm2 |
Models and Dimensions
| Model | Dimension(mm) |
|---|---|
| YBL-Ex-TPLY-20W | Ø175×260 |
| YBL-Ex-TPLY-40W | Ø175×260 |
| YBL-Ex-TPLY-50W | Ø215×275 |
| YBL-Ex-TPLY-60W | Ø215×275 |
| YBL-Ex-TPLY-70W | Ø215×275 |
| YBL-Ex-TPLY-80W | Ø230×320 |
| YBL-Ex-TPLY-100W | Ø230×320 |
| YBL-Ex-TPLY-120W | Ø275×338 |
| YBL-Ex-TPLY-150W | Ø275×338 |
| YBL-Ex-TPLY-200W | Ø310×360 |
