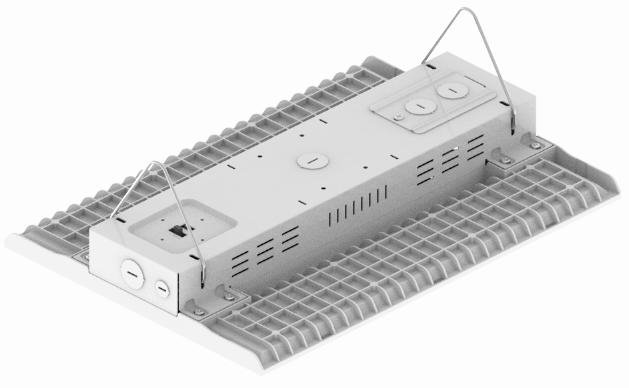

YOUBEELIGHT Panel High Bay Light Type B (80-300W)
The YOUBEELIGHT Panel High Bay Light Type B (80-300W) is designed for factories, warehouses, workshops, logistics centers, gyms, and other high-ceiling industrial spaces requiring efficient, durable LED lighting.
Features
- Using 2835 LED light source, LED luminous efficiency 140- 150LM/W, color rendering index Ra>80.
- Large-area integrated die-casting aluminum shell, integrated heat dissipation of the whole light; transparent air duct design inside and outside, greatly improving heat dissipation performance and prolonging the life of the whole light.
- A non-isolated power supply with a wide voltage input of 100- 240V is used, which has higher efficiency and less heat generation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC100-240V |
| Color Rendering Index | Ra>80 |
| Frequency Range | 50-60Hz |
| Beam Angle | 120° |
| Power Factor | >0.95 |
| Luminous Decay Rate | 1-3% / 1,000Hrs |
| Power Efficiency | >90% |
| Color Temperature | 3000-6500K |
| LED Working Voltage | DC180-260V |
| Working Temperature | 20 deg C-+45 deg C LED Power |
| IP Grade | IP42 |
| Luminous Efficiency | 140-150lm / W |
| Working Lifespan | >50000H |
| Power Line | VDE 3×1.0mm2 |
Models and Dimensions
| Model | Dimension(mm) |
|---|---|
| YBL-FML-80BW | 360×260 |
| YBL-FML-100/120BW | 360×260 |
| YBL-FML-150BW | 460×280 |
| YBL-FML-200BW | 460×280 |
| YBL-FML-240BW | 585×280 |
| YBL-FML-300BW | 585×280 |
